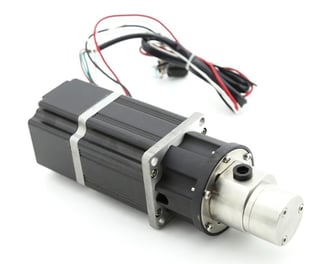

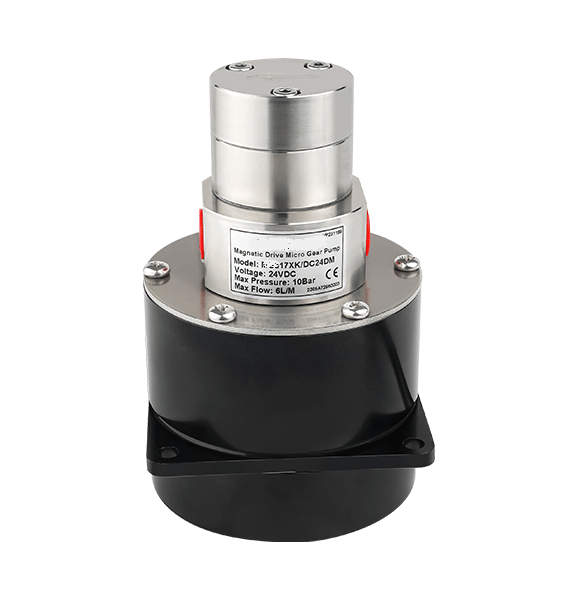

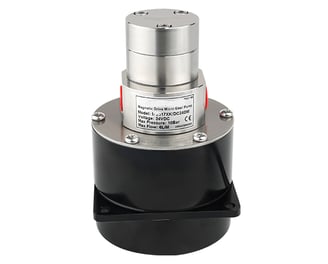

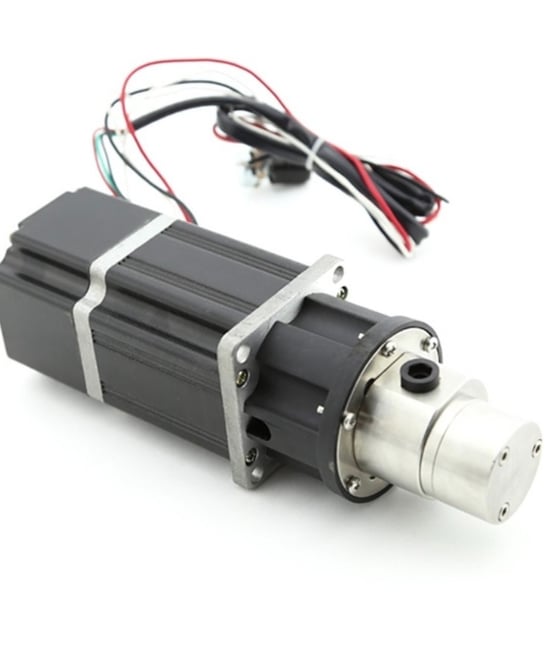

MAGNETIC DRIVE MICRO GEAR PUMP – Model FTM-TMG317XK-DC24DM

Max Head Pressure - 8 Bar, Max Flow 6L/Min, Power - 150W, Voltage - 24V, Inlet Outlet - G1/4"

Altitude: ≤ 2500 M

Humidity environment: ≤ 75%

Fluid viscosity: 50 ~ 1500 CPS

Ambient temperature: -35 ~ 55℃

Fluid temperature: -10 ℃ ≤ T ≤ 85 ℃ (except for the freezing)

Working way: continuous working

Apply the media of: acid and alkali, salt, organic solvents, oils

Motor: DC brushless motor

Lifetime above 20000hours

IP67

Applications : Inkjet Printers | CIJ Printers, Food Processing Machines, Coffee Machine | Milk Machine, Medical Instruments | Medical Beauty, Fuel Cell | Cooling System, EV Charging Cable Cooling

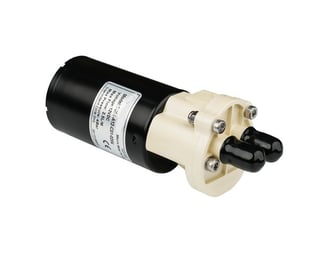

MICRO DC GEAR PUMP BRUSHLESS & Brush Type – 12V & 24V

Voltage 12V Or 24V DC, Flow 2.5L/ Min, Suction Height 0.7Mtr

Ambient temperature: -25°C~70°C(except for freezing)

Liquid temperature: 0°C~80°C

Working mode: Interrupt

Operating voltage range: 12V pump range is 9~15V, 24V pump range is 18~28V

Lifetime reference: 1000H For Brushless & 3000H For Brush Type

TG-01 Micro DC Gear Pump Applications: Automatic Commercial Coffee Machine Milk Pump, Ice making Machines, Coffee Making Machines, Drinking Fountains, Wine Dispensing, Beverage Dispensing, Spraying, Sanitization, Food Equipment, Medical devices, Microplate Washer

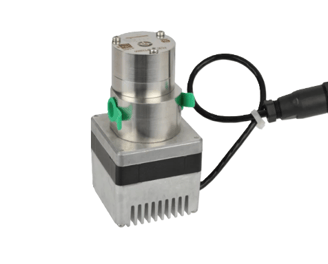

Fluid O Tek - Pump

We supply & service original Fluid O Tek Pump & Its equivalent Of Series FG407/FG413YGOCT1000 Used Mainly In Ink Handling Operation of Ceramic Printing Machines.

We always keep their ware tear spares in our stocks to deliver value for money to our customer with experience of 15 year in thin industries. We provide 3 month warranty of pump for our replaced spares.

Contact us for our detailed technical catalogue
